Advanced - Password Authentication

PlanDev currently only supports password authentication for applications internal to JPL via CAM. This document describes how to enable CAM username + password authentication.

Note that Hasura authorization is enabled by default (even without CAM authentication enabled), so you need either an admin token or JWT provided by the gateway to access it.

info

To learn how to programmatically authenticate with PlanDev to get a token, see the API docs on the topic.

Service Environment Variables

The default PlanDev docker-compose.yml file requires certain environment variables to be set to enable authentication. This section outlines the variable definitions and the services that require them for authentication.

AUTH_GROUP_ROLE_MAPPINGS

Description: Optional JSON object that maps LDAP groups to allowed PlanDev roles.
Service: aerie_gateway
Accepted values: Stringified JSON. Auth provider groups are keys, values are list of allowed PlanDev roles
Example:

{
  "team_leads": [ "aerie_admin" ],
  "power_users": [ "user", "viewer" ],
  "business_users": [ "viewer" ]
}

Default: {}
See: SSO auth docs for more information.

AUTH_TYPE

Description: Authentication method (currently only supports CAM or none)
Service: aerie_gateway
Accepted values: cam or none
Default: none

AUTH_URL

Description: URL of CAM server
Service: aerie_gateway
Accepted values: Any valid CAM API URL
Default: https://atb-ocio-12b.jpl.nasa.gov:8443/

HASURA_GRAPHQL_JWT_SECRET

Description: A JSON string containing a type property set equal to the method of encryption (HS256) and the JWK (key)
Services: hasura, aerie_gateway
Accepted values: {"type": "HS256", "key": "SET_SECRET_PRIVATE_KEY_HERE"}
Default: null
See: https://hasura.io/docs/latest/deployment/graphql-engine-flags/reference/#jwt-secret

HASURA_GRAPHQL_ADMIN_SECRET

Description: Secret password that gives admin access to query Hasura
Services: hasura, aerie_scheduler, aerie_scheduler_workers, aerie_sequencing
Accepted values: Any password string
Default: null
See: https://hasura.io/docs/latest/deployment/graphql-engine-flags/reference/#admin-secret-key

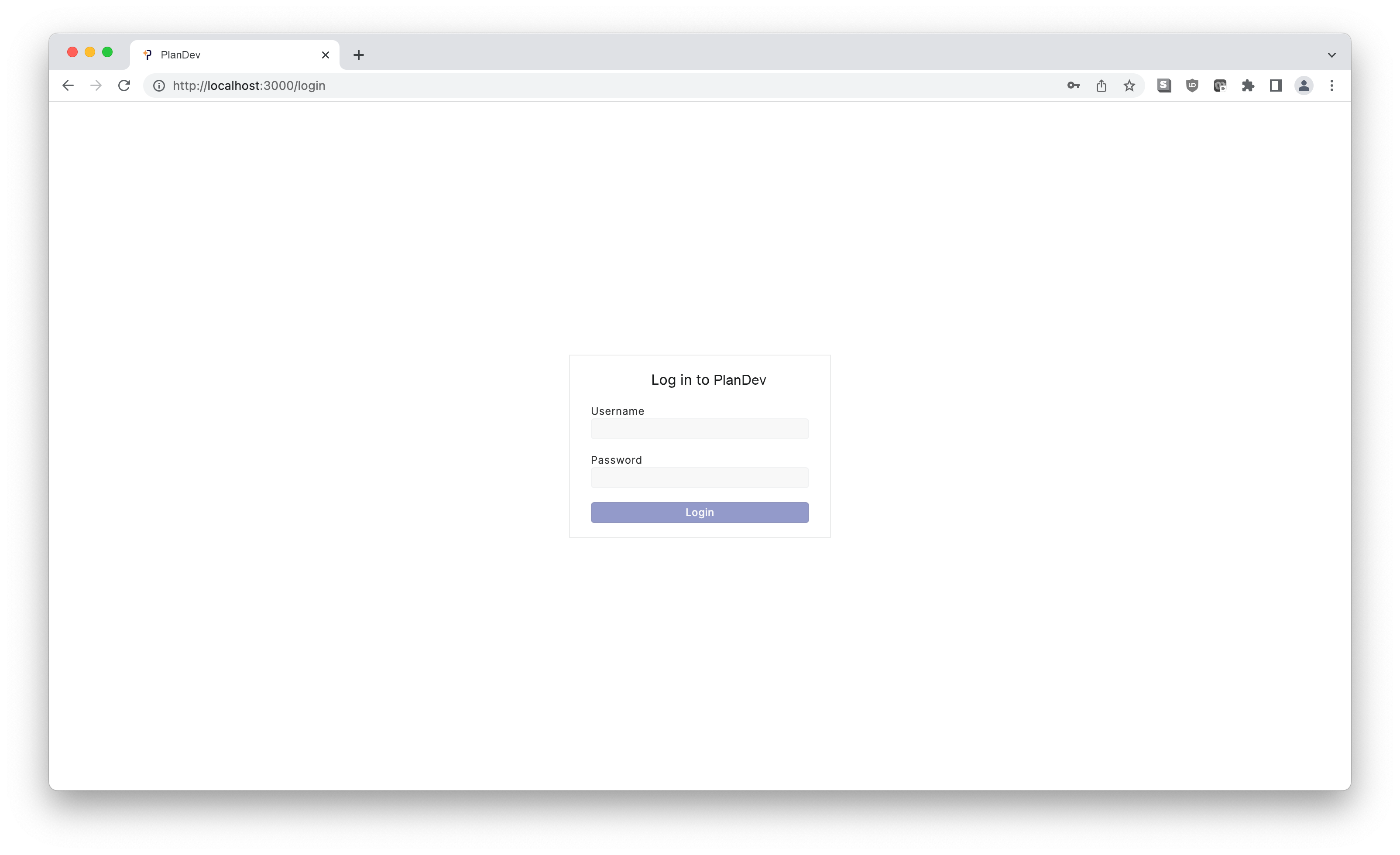

With CAM authentication enabled you can log in to the PlanDev UI with your JPL username and password.
