External Events

An External Event is temporal data used to inform a mission planner's decision making process. By nature, these events are external to Aerie itself and represent temporal occurrences that are immutable in nature.

Examples of External Events include:

• Ground station contacts
• Orbital events
• Weather forecasts

In this document, we will discuss what External Events are, what their containing entities (External Sources) are, their grouping mechanisms (Derivation Groups), as well as how they manifest within Aerie.

Concepts

Data Constructs

With External Events (and External Sources) come several constructs.

External Events

External Events represent temporal occurrences outside of the locus of control of the modelled spacecraft(s). See External Events below for more information.

External Sources

External Sources are containers for External Events and the primary way that users interact with External Events. To get External Events into Aerie, an External Source must be uploaded that contains the event definitions inside. See External Sources below for more information.

External Event Types

External Event Types define the typing of each External Event. This typing groups External Events on the basis of the data they represent. For example, an External Event may be of the type Ground Station Contact, Solar Flare, or Weather Forecast.

External Source Types

External Source Types define the typing of each External Source. This typing groups External Sources on the basis of the data they contain. For example, you may have an External Source Type of Weather Report to represent all your weather reports, and inside each of the Weather Report-typed sources you can expect to find External Events that share a common External Event Type that appears in all Weather Report-typed sources (ex: Temperature).

Derivation Groups

Derivation Groups are collections of External Sources that can be associated with plans. Within a Derivation Group, the collective External Events from its member External Sources are used to create a derived set of events for the Derivation Group. See Derivation below for more information.

Derivation Group & Plan Associations

Derivation Groups can be linked to a plan (or plans) which allows their derived events to be utilized within the plan for visualization, planning, and scheduling. See UI Usage below for more information on use within the UI.

External Events

An External Event is a construct that represents the occurrence of something outside of what is modeled in the mission model. They could be events that are close to the spacecraft and directly affect behavior on it, like a Ground Contact event that might affect when communications happen, or they could be much more remote, like a constellation event. The main concept with External Events is that they are immutable events that occur at some point in time (either instantaneously, or for some set duration) and can/will impact mission planning. Functionally, these are at the interstice between external datasets and activities, in that they manifest on the timeline as activities (discrete blocks of time), but they themselves do not affect the mission model or invoke any actions similar to external datasets.

Figure 1: External Events - Timeline view

Why?

The need for these became apparent after an exploration of External Events implemented as activities and as resources. To mimic the same construct as a resource, we would need to parse the external data and then place it on the timeline as a discrete resource, which given the fact that there are gaps between events and there can also be simultaneous events proved extremely unwieldy and awkward. While activities were a more natural representation, we still required an intermediary of a resource to schedule these activities based off of an ingested file, as it isn't possible to schedule activities exclusively following information in a file.

Figure 2: External Events - External Events with resources and activities

Note

Currently, External Events are not accessible to the automated scheduler for purposes of generating activities based on events, satisfying constraints, or other interactions with other data in Aerie. However, this is in the planned scope for External Events, and future releases will add these capabilities

External Sources

External Sources represent a collection of External Events. When we upload External Events, we can only do so by uploading them in an External Source.

These sources are to be defined in JSON, following a general format that will be discussed below. Any data a user wishes to turn into an External Source/External Events should be converted to the JSON format to allow ingest within Aerie.

Note

There is currently no well-defined, official JSON schema for External Source input, however there are required fields which will be mentioned below, and any non-known fields included will be ignored during ingest. Additionally, no tool currently exists to provide the generic translation to the JSON format, however this is a feature planned for a future release.

Schema

There are two parts to each External Source: 1) a source header and 2) a collection of events:

{
    "source": {
        // fields
    },
    "events": [
        // events
    ]
}

Source

The source field includes the following fields:

• key

  • Unique identifier for the External Source
  • Uniqueness must hold across the Derivation Group that it is a a part of
  • Typically a filename or combination of details about the source itself (i.e., an external version number, spacecraft identifier, etc.)
  • Example: ExampleExternalSource:example-external-source.json

• type

  • Used to classify the External Source, and categorize for grouping/filtering within the UI & Derivation Groups (see External Source Types for more information)
  • Example: ExampleSourceType

• valid_at

  • Similar to a version number, though it describes at exactly what real-world time a file becomes valid
  • Can be sorted and ordered like a version number, but additionally provides extreme detail about when it can/should be utilized which plays a key role in derivation
  • Example: 2022-001T00:00:00Z

• period

  • Specifies the exact range of simulation/plan time over which this external source applies.
    • Multiple External Sources of the same External Source Type may cover the same period, which is where valid_at comes into play - see derivation for more information
    • Composed of a combination of start_time and either end_time or duration
  • Example

      ...,
      "period": {
        "start_time": "2022-001T00:00:00Z",
        "end_time": "2022-008T00:00:00Z"
      },
      ...

Events

Events are represented as a set of objects contained in a list, and each event has the following fields:

• key

  • Unique identifier for the External Event
    • Uniqueness is required within the External Source, but not across different External Sources. For more information, see derivation
  • Currently has no restrictions or requirements, though those can be optionally imposed by users - see Formal JSON Schema for more information
  • Example: ExampleEvent:1/sc/sc1:1:X/1

• event_type

  • Used to classify the External Event, and categorize for grouping/filtering within the UI & Derivation Groups (see External Event Types for more information)
  • Example: GroundContact

• start_time

  • Specifies the start time of the External Event within simulation/plan time
  • Example: 2022-001T00:00:00Z

• duration

  • Specifies how long the External Event lasts in simulation/plan time (represented in HH:MM:SS)
  • This value may be 0 to represent an instantaneous event (ex: time of sunrise/sunset)
  • Example: 00:30:00

Full External Source Example

The following is a full example of a valid, JSON representation of an External Source that can be ingested by Aerie.

The example represents a week-long weather forecast where each event is the report for a specific day.

{
    "source": {
        "key": "WeatherForecast2024001_2024008.json",
        "source_type": "WeatherForecast",
        "valid_at": "2024-01-00T00:00:00Z",
        "period": {
            "start_time": "2024-001T00:00:00Z",
            "end_time": "2024-008T00:00:00Z"
        }
    },
    "events": [
        {
            "key": "Weather/Day/001",
            "event_type": "WeatherReport",
            "start_time": "2024-001T00:00:00Z",
            "duration": "24:00:00"
        },
        {
            "key": "Weather/Day/002",
            "event_type": "WeatherReport",
            "start_time": "2024-002T00:00:00Z",
            "duration": "24:00:00"
        },
        {
            "key": "Weather/Day/003",
            "event_type": "WeatherReport",
            "start_time": "2024-003T00:00:00Z",
            "duration": "24:00:00"
        },
        {
            "key": "Weather/Day/004",
            "event_type": "WeatherReport",
            "start_time": "2024-004T00:00:00Z",
            "duration": "24:00:00"
        },
        {
            "key": "Weather/Day/005",
            "event_type": "WeatherReport",
            "start_time": "2024-005T00:00:00Z",
            "duration": "24:00:00"
        },
        {
            "key": "Weather/Day/006",
            "event_type": "WeatherReport",
            "start_time": "2024-006T00:00:00Z",
            "duration": "24:00:00"
        },
        {
            "key": "Weather/Day/007",
            "event_type": "WeatherReport",
            "start_time": "2024-007T00:00:00Z",
            "duration": "24:00:00"
        },
    ]
}

Note

Currently, External Sources only accept a start_time and an end_time, whereas External Events accept only a start_time and a duration. This may change in the future (i.e. External Events may accept a start time and an end time as well, for example). This is largely due to simplicity in implementation.

Derivation

Derivation was an operation conceived for the reconciliation of overlapping External Sources. The problem at hand was that it is entirely possible for sources to be generated at later points in time, that cover slightly different windows of plan time than their predecessors.

Figure 3: A diagram illustrating a motivating case for derivation. Which events should be present?

If this is the case, some reconciliation scheme is needed to determine which External Events from these External Sources are valid and should be visible on the timeline.

Reconciliation Mechanism

To begin this discussion, we should first talk about when External Sources apply.

External Sources, as discussed earlier, have within them a valid_at field, which was described as a more particular form of a version number. With this, we know we can impose an ordering of External Sources. Given that ordering, figuring out when each External Source actually applies is as simple as determining, for a given time (or slot of time), what the most recently valid External Source is. For example, the following set of 4 External Sources would be applicable in the following order. Note that one of the External Sources, B, is valid twice, as it is the most recently valid External Source for a given slot of time:

Figure 4: A diagram illustrating how External Sources are reconciled against each other in terms of the time slots they occupy

Given this, we can now discuss how to derive External Events from a Derivation Group of External Sources. There are 4 rules (though the first two are effectively cases of each other):

1. An External Event superseded by nothing will be present in the final, derived result.

   The logic behind this is that this External Event has no future data that might challenge its validity, so it reasonably would trickle down as an event in a final result.

2. An External Event partially superseded by a later External Source, but whose start time occurs before the start of said External Source(s), will be present in the final, derived result.

   The logic behind this is similar. This External Event, at its start, has no future data that might challenge its validity. Because its start is still considered valid, we accept the event in its entirety to the final, derived result, as no future External Source that could overlap with this External Event could place an External Event that applies to the time that this External Event starts at. If it did, we have a case of rule 3.

3. An External Event whose start is superseded by another External Source, even if its end occurs after the end of said External Source, will be replaced by the contents of that External Source (whether they are blank spaces, or other events).

   The logic here is simply that we now have more recent data, so we can safely do a complete replacement. Should an External Event be replaced despite ending after the original source, we can still justify this as the updated External Source - if it had need for such an External Event - would have included it.

4. An External Event that shares an ID with an External Event in a later External Source will always be replaced.

   By introducing naming, we can allow replacement.

Derivation Example

A diagram illustrating each of the derivation cases follows:

Figure 5: An example illustrating each derivation case

The following explains what is happening to each External Event in the example:

• External Source A

  • 2:D

    • Status: Excluded
    • Rules
      • 3: Even though its end is after end of External Source B, the start is subsumed. In any case, it is wholly subsumed by External Source C.
      • 4: Replaced by key in External Source C (regardless of the fact that the new event has a different type).

  • 7:C

    • Status: Excluded
    • Rules
      • 3: Even though its end is after end of External Source B, the start is subsumed.

  • 8:B

    • Status: Included
    • Rules
      • 1: This External Event is subsumed by nothing.

• External Source B

  • 1:A

    • Status: Included
    • Rules
      • 1: This External Event is subsumed by nothing.

  • 2:A

    • Status: Excluded
    • Rules
      • 3: Completely subsumed by External Source D.
      • 4: replaced by key in External Source C (regardless of the fact that the new event has a different type).

  • 3:B

    • Status: Included
    • Rules
      • 2: Starts before any other External Source, despite end being subsumed.

  • 4:B

    • Status: Excluded
    • Rules
      • 3: Completely subsumed by later External Source.

• External Source C

  • 5:C

    • Status: Included
    • Rules
      • 1: This External Event is subsumed by nothing.

  • 6:C

    • Status: Included
    • Rules
      • 1: This External Event is subsumed by nothing.

  • 2:B

    • Status: Included
    • Rules
      • 1: This External Event is subsumed by nothing.
      • 4: Also most recent occurrence by key name, so this is the only one that persists

• External Source D

  • 9:C
    • Status: Included
    • Rules
      • 1: This External Event is subsumed by nothing.

Derivation Groups

The final question remaining is: what set of external sources will this derivation operation be run against? One possible candidate for this could be the External Source Type. External Events that share an External Source Type include External Events of the same types, and will likely overlap in key namespace as well. This is a nearly ideal solution except in the case of contingencies.

Imagine we have 4 sources of the same source type. Two of these relate to an ideal contingency, and two of these relate to a degenerate contingency:

1) Ideal

• DSN_Contact_Ideal_2026001007.json
• DSN_Contact_Ideal_2026003010.json

2) Degenerate

• DSN_Contact_Degen_2026001007.json
• DSN_Contact_Degen_202603010.json

If we were to derive solely based on External Source Type, we would effectively be stacking all of these sources against each other to produce one result:

Figure 6: A diagram illustrating the unwanted conflation of two sets of sources

Given that these are different cases (despite sharing a source type) it would be useful to have different groups under which derivation is possible. This way, we don't conflate sources just for sharing a source type:

Figure 7: A diagram illustrating the prevented conflation of two sets of sources

As such, we now define the notion of a Derivation Group. A Derivation Group defines a subgroup within an External Source Type, of External Sources to derive against each other. Derivation Groups are what we associate with plans (as opposed to individual, un-derived External Sources, or entire External Source Types).

UI Usage

External Events show up in the UI in two main places - an External Source Manager, and in plans (both in panels and timelines). Our discussion of UI features will therefore be divided along which page the features appear on.

Note

There is also a tutorial section that walks through the content of this section in a step-by-step fashion, albeit with less detail.

External Source Manager

The External Source Manager page handles the uploading & inspection of External Sources, as well as the creation and management of Derivation Groups.

Figure 8: External Source Manager

Creating External Source Types, External Event Types, and Derivation Groups

Within the External Source Manager, the user is able to create new External Source Types, External Event Types, and Derivation Groups. While this is currently not required (and these structures will be automatically created if they don't exist on source upload), it is planned to be the main way of creating these types in the future as each will require a strict schema to generate.

To create one of these types, click the Create New Groups or Types button in the top-right:

Figure 8: Create Groups and Types button

Once the modal has been opened there is a set of tabs - select the tab for the data type you'd like to create:

Creating a Derivation Group

Creating a Derivation Group requires both a name for the group, and a source type to link it with.

Figure 8: Create a Derivation Group

Creating an External Source Type

Creating an External Source Type just requires a name for the type.

Figure 8: Create an External Source Type

Creating an External Event Type

Creating an External Event Type just requires a name for the type.

Figure 8: Create an External Event Type

Uploading an External Source

The main view allows users to upload External Sources. Most of these fields autofill and are immutable once parsed - except the Derivation Group which will be autofilled in the style of external_source_type Default, but can be edited by the user before upload.

Figure 9: Uploading an External Source

Inspecting an External Source

After uploading an External Source, it will show up in the table on the upper-right pane. This table can be filtered by External Source Type as well as sorted by each of the columns - note the default multi-sorting on the columns Source Type, Derivation Group, and Valid At, which is meant to present the sources in the easiest-to-read manner (grouping by their common types & Derivation Groups, then ordering by their Valid At times).

Figure 10: External Source Table

Selecting a source allows for the inspection of the source, which is essentially an in-Aerie rendering of what's included under source in the uploaded JSON (as discussed earlier). It is here, as well as in the table, that deletion can be performed. Note that for deletion to work, an External Source must not be associated with any existing plan (that is the Derivation Group it is a part of must be dissociated from all plans before deletions become legal). Aside from that, there is currently no system of ownership, meaning admins and users alike, as long as External Sources satisfy the aforementioned condition, can delete at will. Viewers, however, cannot.

It should also be noted that all this inspection takes place outside the context of a plan, so that External Sources & their events can be viewed without having to open and associate the External Source(s) to a plan.

Figure 11: Inspected External Source

Finally, it is also possible to inspect each source's contained events as a table. This is useful, as Derivation Groups on plan timelines only show what has been derived, meaning anything that has been selected against won't appear. This page is therefore the absolute truth to see everything that is included, derived-out or not, with a given External Source.

Figure 12: External Events Table

Plan

Once an External Source has been uploaded, it can be viewed and interacted with in the context of a plan.

Figure 13: Overview of the plan view containing External Event information

To begin working with external sources in the plan, the left side panel should be set to the "External Sources" option. This panel is where users (administrators or plan collaborators) can associate different Derivation Groups with the plan.

Derivation Group Management

There are currently two levels to linking a Derivation Group to a plan: association and enabling. Association is handled here, via the Manage Derivation Groups button. This presents a modal where users can expand different Derivation Groups to view the associated sources and select whether or not they would like to associate said Derivation Group with their plan.

Figure 14: Derivation Group Modal

Association simply means that the plan is aware of the existence of the Derivation Group, and is the gatekeeper for whether it is visible in the External Sources panel. In this panel lies the second level to linking, which is enabling. Enabling simply dictates whether a Derivation Group (even if the filters in the Timeline Editor select for it) is visible on the timeline. Disabling hides all events associated with the group completely, whereas enabling does the opposite. It does not, however, dissociate the plan and Derivation Group. This is simply a visibility attribute and is actually persisted as part of the view (and even persists after Derivation Group dissociation/reassociation, meaning if a Derivation Group is dissociated and then re-associated, its "enabled" setting stays the same).

Once a Derivation Group has been associated with the plan, new external event sources may be added to it (or deleted from it), causing the derivation process to automatically re-run, and affecting the events which are shown on the plan timeline. For this reason, this panel also provides users with a notification of recently added and deleted sources which affect this plan, and their respective External Source Type and Derivation Group. This notification persists until acknowledged with the Dismiss button.

Enabled	Disabled

Figure 15: External Sources Panel

Timeline

The timeline shows any events from Derivation Groups that are associated with the plan, enabled in the current view, and are filtered for in the timeline editor. Having covered the first two, we can now discuss the editor and its effects on the timeline.

Figure 16: Timeline & Layer Editor

The layer of the timeline is modelled after the activity layer, as it provides an easily readable representation of discrete-time occurrences. Layers share the layer options also provided to activity layers, as well as implementing a 'Group By' option specifically for external events. The 'Group By' mechanic allows the user to have external events either grouped by their external source (within the derivation group), or their event types.

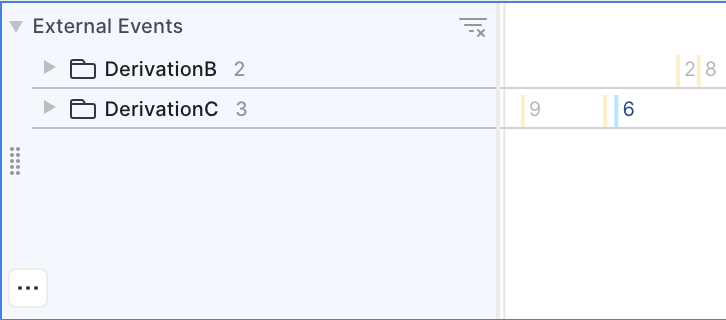

'Group By' External Source	'Group By' External Event Type

Figure 17: External Event Layer Options

Tables and Inspection

The screenshot below shows a brief overview of the remaining panels that have been added to plans. It is possible to either mouse over External Events for additional detail or to select them in the timeline, which selects them in a table view beneath the timeline as well as details them in the right pane. This looks as follows:

Figure 18: The selected External Event view and a table of External Events, working in tandem

A Note on Views

As a final note on the frontend, it is worth briefly detailing what parts of the plan page additionally get persisted when a view is saved:

• Derivation Group enablement - whether a Derivation Group is enabled or not in the External Sources panel,
• External Event Type filters - the External Event Type filters selected in the timeline editor,
• External Event options - the options in the timeline editor filter.

Scheduling Activities from Events

External events associated with a plan are accessible from the Procedural Scheduling API, just like resources and activities. This allows users to write scheduling goals which create activities based on the presence (or absence) of external events - for example, "create a downlink activity 5 minutes after the start of every 'DSN Contact' type event".

To access events in a procedural goal, you must create an External Events timeline object - see Timelines: External Events. A full example of a scheduling goal using events can be found on the Procedural Scheduling Examples page.

Currently, external events are not accessible from the Declarative Scheduling EDSL - but we may implement support for this in the future.

What Remains

Here, we discuss briefly everything that is not currently implemented but that we do plan to in the future.

Formal JSON Schema

We currently lack a formal schema uploaded External Sources and their contained External Events. The extent of our schema is just that we ask users to include the fields described in External Sources, and that any additionally defined fields will be ignored.

Prior to starting work in the UI, some work on a schema was done. However, it was ultimately ruled that making something restrictive like a schema might be smarter after having done some work on External Events, as it is entirely possible to spend a lot of time on a schema beforehand only to discard or rework a fair amount of it as we progress with development. At this point, we are a lot more confident in what fields should definitely be present in a JSON Schema, which means that creating a definition should be a lot more feasible in a future batch of work.

These Schemae would likely be a part of the mission model themselves; seeing as defining what activities and resources are allowable for a mission plan are part of a mission model, so too would be definitions of allowable External Source Types and External Event Types.

This raises the question of how External Source Types and External Event Types should be handled in a Schema. The idea we are currently floating is a multilayered Schema - one that is common to all sources (and events), which essentially details the fields listed in External Sources, as those show in any External Source regardless of type. The second layer would constrain for an External Source's metadata field (to be included in a future update) and for an External Event's metadata field (to be included in a future update). Different External Source Types and External Event Types should have different allowable metadata, and as such defining a subschema for these fields becomes necessary to restrict and add uniformity to what should be included in that field given the type. It is these subschemae that we suggest should be part of a mission model. Exactly how this definition is to be created, how these layers are to be reconciled, and how to integrate them with the concept of a mission model is yet to be decided.

Ownership/Roles

Our current solution to a lack of clear ownership/roles around External Sources is as follows:

• any user and any administrator can add External Sources,
• as there is no ownership yet, any user and any administrator can delete External Sources as long as the Derivation Group they are a part of is not associated with any plans, and
• associations between plans and Derivation Groups can be handled by any administrator or a user that is collaborating on that plan.

It might make sense to add ownership, i.e. a given user owns an External Source and therefore has privileges to delete it (much like how plans are implemented, except External Sources cannot be edited), but as it would primarily be used for deletion functionality but would introduce a lot of complexity for this simple problem, it was sidelined entirely.

That being said, as we move forward with more features relating to External Events, more nuance may come to the problem of ownership and roles. Once plans start actually depending on these plans, the rules surrounding ownership and permissions may need to change or be entirely rethought. Ultimately, we need something that justifies the implementation of such a scheme in that it provides more than the status quo.
