Expanding Templates

Now that our templates have been authored (see Authoring Templates), we can expand them into sequences in the Aerie UI. The process is very similar to the process for Typescript rules outlined on the Sequences page, but with some differences.

Assume we have sequence templates authored for activity types GrowBanana and ThrowBanana, and have now created the following plan:

Figure 1: The plan

We only wish to expand for the activity types we have a template defined for, so we create a sequence filter with these types in the Sequences & Expansion tab.

Figure 2: The sequence filter

From this, we mouse over that sequence filter and click the play button to create a sequence from that filter, and go along with the default range.

Finally, we mouse over the new sequence and click its play button to run expansion. We can now view our result:

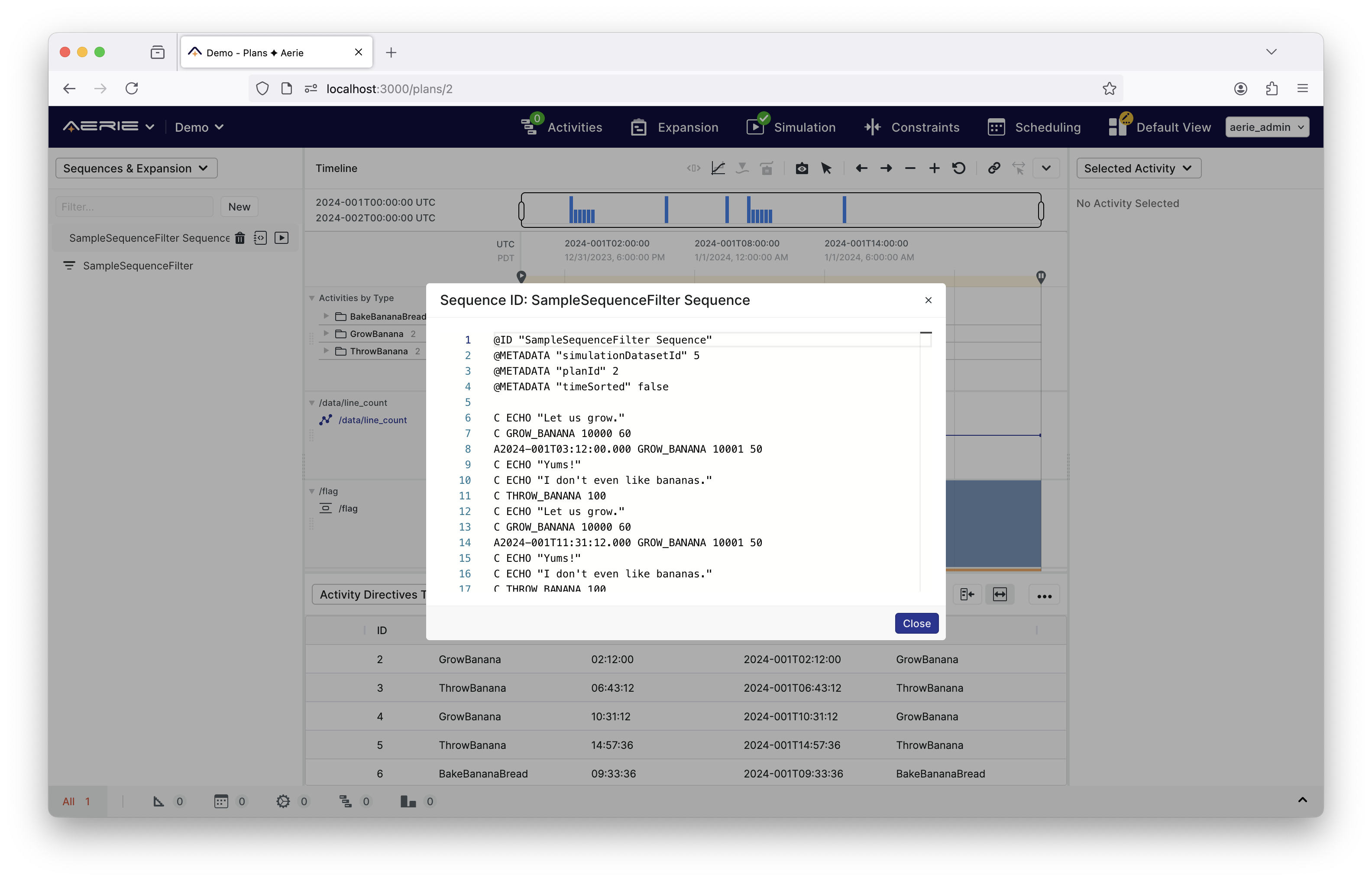

Figure 2: The result of expanding our sequence
