Bundle Protocol Security Library (BSL) v1.1 User Guide

This document describes and explains the API and workflows of the BSL. For technical details about the BSL architecture, installation, upgrade, monitoring, and maintenance see the BSL Product Guide. Details about specific API structures and cross-relationships is provided in the online BSL API Docs.

The following are Generic terms:

Application Programming Interface (API)

The programming language-level interface defined by a library. For the C-language this is defined by header files in a specific directory structure.

Application Binary Interface (ABI)

A combination of instruction set architecture (ISA) and operating-system-specific binary forms for libraries and executables. A built library has a specific ABI that can be different on different platforms even if its API does not change.

Concise Binary Object Representation (CBOR)

A binary encoding defined in [RFC8949] which follows a superset of the JSON data model (see below) and enables both small encoded size as well as efficient encoding and decoding. The BSL itself uses CBOR to encode the contents of BPSec ASBs.

JavaScript Object Notation (JSON)

A text encoding defined in [RFC8259] which allows a limited data model to be encoded in a human-readable form. The BSL does not use JSON directly, but the example ION-heritage Policy Provider uses JSON for encoding policy configuration.

JSON Web Key (JWK)

A JSON data structure defined in [RFC7517] which represents a set of cryptographic keys and their parameters. The BSL does not use JWK directly, but the Mock BPA uses JWK for its key store configuration.

The following are BP- and BPSec-related terms:

Bundle Protocol (BP)

The overlay network protocol used to transport BPSec blocks and target blocks between nodes defined in [RFC9171].

Bundle Protocol Security (BPSec)

The mandatory-to-implement security mechanism to protect blocks of a BP bundle defined in [RFC9172]. This is the principal scope of behavior implemented in the BSL.

BP Agent (BPA)

The instantiation of a BP node with a unique administrative Endpoint ID. A single BPA may have any number of additional endpoints registered to various applications on its node.

BP Endpoint

The source or destination of a BP bundle, identified by a BP Endpoint ID (EID).

BP Endpoint ID (EID)

The identifier of a BP Endpoint; names the source and destination for a BP bundle.

Bundle (per BPv7)

The protocol data unit of Bundle Protocol, which uses a CBOR-encoding of its data.

Block (per BPv7)

Each sub-element of a bundle. All bundles contain a mandatory primary block, any number of extension blocks, and a mandatory payload block. Each extension block has an explicit block type identifier.

Block-Type-Specific Data (BTSD)

The arbitrary-length binary data containing the contents of a block which is block-type-specific.

Block Integrity Block (BIB)

A well-known block type used for integrity operations in BPSec.

Block Confidentiality Block (BCB)

A well-known block type used for integrity operations in BPSec.

Abstract Security Block (ASB)

A the block-type-specific data for one of the security block types: BIB or BCB, which contains an encoded CBOR sequence.

Security Operation (per BPSec)

A single security operation is a combination of choosing a type of security (integrity or confidentiality), a single role, a single target (block), a single security context, and a set of options that are context-specific.

Role (per BPSec)

This determines the action of a security operation, as one of:

Source

This role causes a security operation to be added to a security block.

Verifier

This role verifies, but does not modify, a security operation within a security block.

Acceptor

This role verifies and then removes a security operation within a security block.

Security Context (per BPSec)

Each security operation has a single associated BPSec context, identified by its Context ID. Context IDs can either be well-known, and registered with IANA, or taken from a reserved block for private or experimental use.

Target (per BPSec)

Each security operation has a single target block identified by its unique-to-the-bundle block number.

Parameter (per BPSec)

Each security block (the entire ASB) has a set of parameters which apply to all operations in the block.

Result (per BPSec)

Each target of a security block has a set of results which apply to a single operation associated with one target.

The following are BSL-specific terms:

BSL Context

An container of state and memory allocation for each instance of the BSL. Each BSL context is not thread safe, it must be used within a single thread exclusively.

Bundle Context

A container of state and memory allocation for each bundle being processed by a BSL Context.

Policy Provider (PP)

An abstract interface (and a C callback descriptor struct) for providing security policy to a BSL Context. The BSL dynamic backend contains a run-time-variable PP registry.

Security Context (SC)

An abstract interface (and a C callback descriptor struct) for providing BPSec security context processing to a BSL Context. The BSL dynamic backend contains a run-time-variable SC registry.

Security Action

Each action contains an ordered sequence of security operations and their internal configuration. PPs produce sets of actions when inspecting a bundle and operate on the same set of actions when finalizing a bundle.

Security Option

An option is an internal-to-BSL item which communicates intent for a single Security Operation between PP and SC.

The "factory default" BSL is configured to operate with a "dynamic backend" which uses dynamic heap allocation and variable-sized data containers (arrays, lists, maps, etc.). An alternative backend could be developed for specific BPA needs, but that is outside the scope of the BSL project.

The factory default BSL also builds example Policy Providers and example Security Contexts in order to be able to fully exercise the BSL behaviors. Alternative Policy Providers are expected to be developed for each deployment. Alternative Security Context implementations are expected to be developed for future contexts, and to adapt to deployment-specific needs such as for key management or specialized cryptographic interfaces.

The BSL project is based on a single source tree but is subdivided into separate libraries, each with their own cross-dependencies (for compiling and linking). The dependencies between areas are shown in Figure 2.1, “Logical Structure and Dependencies”, where the single "BSL" block is meant to represent both the frontend and backend libraries for simplicity.

Figure 2.1. Logical Structure and Dependencies

The BSL is internally separated into two layers of implementation: an API-centric abstract Frontend library and a host-binding concrete Backend library.

The Frontend library provides the service API for the BSL to be called by its associated BPA as needed and for stable public APIs used by Policy Provider implementations and Security Context implementations. The Backend library implements forward-declared structs and functions from the Frontend using specific concrete data containers, algorithms, etc.

Most interactions with the BSL/frontend API occur within the context of a single bundle. There are four points along bundle traversal where BSL interaction from the BPA is necessary:

1. After bundle transmission from an application source (APPIN).

2. Before bundle delivery to an application destination (APPOUT).

3. After bundle reception via a CLA (CLIN).

4. Before bundle forwarding via a CLA (CLOUT).

This is depicted in Figure 2.2, “Interaction Points from the BPA into BSL”, where each of the edges in that diagram indicates a call from the BPA into the BSL to process security on that single bundle at the specific location. A more detailed view of the BSL processing sequence at each of those interaction points is described later in Section 4.3, “Single-Bundle Workflow”.

Figure 2.2. Interaction Points from the BPA into BSL

In addition to the bundle-related calls into the BSL and from the BSL, there are also other calls related to:

1. Heap memory management callbacks used by the BSL. If not provided, the standard libc functions for heap allocation are used.

2. Logging callbacks related to determining if logging is enabled at a specific severity level and to record a log event.

3. Telemetry counter access from each BSL instance through a synchronous call from the BPA.

These secondary callbacks are registered by the BPA as part of the initialization of Section 4.1, “Initialization of BPA Callbacks” and explained in more detail in Section 3.2, “Secondary Interactions”.

Separate from the structural aspects of the BSL and its external APIs, there are different directions that calls are being made for different interactions between the same entities. For the factory configuration, using the dynamic backend, these interactions take two forms:

Frontend API

These are calls into the BSL based on functions declared in its library headers. These functions are all declared by the BSL frontend library and defined by its backend library. The portion of the frontend API used by the BPA to initiate security processing is called its Service API.

Callback API

Function calls from the BSL backend into its environment, either to its host BPA or to one of its registered PP or SC instances. The signature of these callback functions is declared by the BSL, but their definitions are made outside the BSL. The specific callback function (pointers) registered to the BSL are determined by the host BPA at the time of BSL context initialization (see Section 4.1, “Initialization of BPA Callbacks”).

The initiating calls are directed from the BPA into the BSL, and then into PPs (to inform what security operations need to be done) and SCs (to actually execute the security operations). This is depicted in Figure 2.3, “Calls Directed From the BPA”, where the BPA initiates the sequence using the frontend API and the BSL calls into each PP and necessary SC based on callbacks injected into the BPA at their times of registration.

Figure 2.3. Calls Directed From the BPA

As part of normal PP and SC processing, they will need to obtain data from the bundle, access its various blocks, and obtain some data from the BPA itself. Some of these calls will originate from the BSL itself and some will originate from the PP and SC instances, passing through the BSL based on its own frontend API. This is depicted in Figure 2.4, “Calls Directed To the BPA”, which elides the ultimate source of each of these calls (which is always the BPA).

Figure 2.4. Calls Directed To the BPA

All of the discussion in this subsection is at the level of logical entities and information models. It does not map one-for-one with the actual APIs of the BSL, but is useful for explaining terminology and framing explanations at a higher level than the C-language details.

The BSL proper is embodied as a "BSL Context" state, for which a single process can have any number of instances. One BPA option is to have a single BSL Context for all of its security processing, which will save on memory use but will act as a bottleneck if the BPA performs its own bundle processing concurrently at each of the interaction points. Another BPA option is to use a separate BSL Context for each interaction point and operate them independently and possibly concurrently.

Because the function of the BSL is perform security processing on individual bundles, all of the processing of the BSL Context operates on a single "Bundle Context" at a time. The purpose of a Bundle Context is to both relate back to some form of BPA-specific handle used to identify the bundle within the BPA, as well as keeping BSL-specific state derived from the BPA-supplied bundle data such as an efficient look-up table for block types or block numbers.

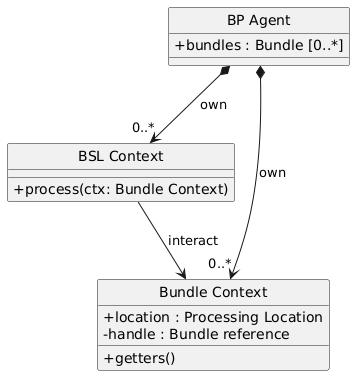

Figure 3.1. BPA and Bundle Context Associations

Each BSL Context instance is associated with one or more Policy Provider instances and one or more Security Context instances, as depicted in Figure 3.2, “BSL Structure Breakdown”. The Policy Providers are used to control what the BSL needs to do for a specific bundle, as discussed in more detail in Section 3.3, “Policy Provider Interface”. The Security Contexts are used to validate and actually execute each security operation, as discussed in more detail in Section 3.4, “Security Contexts”.

Figure 3.2. BSL Structure Breakdown

In addition to the externally-visible information about security operations and their target, parameters, and results the BSL adds the notion of a security Action which is an ordered sequence of specific operations. This is necessary because some policies require, for example, some operations to be accepted before others are sourced which would refer to the same target block.

Another internal information item is the security Option, which is used to communicate configuration of individual security operations between a Policy Provider and an associated Security Context. Some options are converted by the SC into Parameters or Results that get encoded into the ASB when acting as the Source role. Some options, like key identifiers for the default security contexts, do not have representation in the ASB but are necessary for correct processing of the security operation.

Figure 3.3. Security Operation Associations

Separately from the bundle-related interactions described in Section 3.1, “Bundle Interactions”, the BPA and BSL interact through several other interfaces related to infrastructure needs described below and depicted in Figure 3.4, “Secondary Associations with BPA”. For the dynamic backend, the callbacks are registered during initialization of the process in Section 4.1, “Initialization of BPA Callbacks”.

Heap Allocation

For the dynamic backend, heap memory management callbacks are contained in a memory descriptors struct. As a safeguard for consistency, the custom memory functions will only be used when all of the callback pointers are non-NULL. If not provided, the standard libc functions for heap allocation are used.

Event Logging

There are two callbacks in the dynamic backend related to logging. One is a function to determine if logging is enabled at a specific severity level, which is useful to avoid resource-intensive processing that is only actually recorded at low severity. The other is a function to actually process and record log events, each event includes a human-readable text message as well as metadata about the event such as its severity and the timestamp at which the event occurred. The event interface is similar to the POSIX syslog API but tailored to BSL use.

Telemetry Counters

Telemetry from each BSL context is accessed through calls into the BSL context via the synchronous function BSL_LibCtx_AccumulateTlmCounters(). It is up to the host BPA to determine if, when, and how often to collect BSL telemetry and either log or aggregate the values itself. The content of the obtained BSL_TlmCounters_t struct is designed to be aggregated across multiple BSL contexts to make it easy for a BPA to report on statistics at individual interaction points as well as aggregated to whole-node statistics.

Figure 3.4. Secondary Associations with BPA

Policy Providers need to be registered with a library context via the dynamic backend before they can be used. Policy Providers must implement the function headers of the dynamic backend BSL_PolicyDesc_t struct defined in the BPSecLib_Private.h header file.

Policy Providers must inspect each bundle to produce an Action Set, containing Security Operations. Policy Providers also must finalize over a bundle after each Security Operation has been executed by the security context.

The BSL includes a simple rule-based example PP that may be utilized by any BPA (see Chapter 6, Example ION-Heritage Policy Provider), and is used by the Mock BPA for BSL testing (see Chapter 7, The BSL Mock BPA). This policy provider’s data is mutex-protected and may be re-used among multiple threads / BSL contexts (see the Mock BPA for an example).

Security Contexts need to be registered with a library context via the dynamic backend before they can be used. Security Contexts must implement the function headers of the dynamic backend BSL_SecCtxDesc_t struct defined in the SecurityContext.h header file.

Security Contexts operate in the context of a single Security Operation over a bundle. Security Contexts must validate Security Operations for consistency, and process Security Operations on bundles to produce security outcomes.

The BSL includes two Default Security Context implementations, as explained in Chapter 5, Example Default Security Contexts, which are also used by the Mock BPA for BSL testing (see Chapter 7, The BSL Mock BPA).

The BSL library frontend and its dynamic backend do not rely on any externally configured preprocessor defines to operate normally.

The dynamic backend does use defines to configure how the M*LIB library allocates memory, routing all allocation calls to the host heap allocation callbacks (see Section 3.2, “Secondary Interactions”).

The following steps are not thread safe and must be performed before any BSL context instances are initialized (in Section 4.2, “Initialization of a BSL Context”).

1. Set & Initialize Host Descriptors: The BSL backend relies on host-specific information from the BPA, such as EID registering and encoding information. The function-pointer fields of a BSL_HostDescriptors_t struct should be set with host-implemented functions and initialized with BSL_HostDescriptors_Set() for successful BSL operation. See the Mock BPA for a simple example of implementing host descriptors.

The following steps contain BSL initialization instructions to be performed once (per-thread). The correct operation relies on the host BPA configuration from Section 4.1, “Initialization of BPA Callbacks” to be in-place.

1. Initialize the Library Context: Each runtime instance of the BSL is isolated for thread safety within a host-specific struct referenced by a BSL_LibCtx_t pointer. Each instance should be initialized using BSL_LibCtx_Init().

2. Initialize EIDs: BPAs can register one or more nodes, each of which has a unique endpoint ID (EID). Each EID must be registered with the host using BSL_HostEID_Init().

3. Register Example Policy Provider with the Library Context: Register the example Policy Provider with the Library Context.

4. Initialize Cryptographic State & Register Default Security Contexts with the Library Context: Initialize the backend cryptographic interface with BSL_CryptoInit(). Then, register the two Default Security Contexts ("BIB-HMAC-SHA2" and "BCB-AES-GCM") with the Library Context.

The following steps should be performed for each bundle being processed, their entity relationships are depicted in Figure 4.1, “Sequence Diagram of Per-Bundle Workflow”. All of these actions operate within a BSL library context, initialized in Section 4.2, “Initialization of a BSL Context”.

1. Initialize Bundle Context for each Bundle: For each bundle being processed by BPA at one of the four points of interaction (APPIN, APPOUT, CLIN, CLOUT), initialize a bundle context. The bundle context will keep track of a bundle’s state throughout its interaction with the BSL. The context must utilize the host-specific struct BSL_BundleCtx_t.

2. Inspect Bundles with Policy Providers: Utilize the example Policy Provider’s inspection function to produce an Action Set that contains Security Operations (Security Operations) to perform on the current bundle context.

3. Validate Security Operations with Security Contexts: For each Security Operation contained within the Action Set, utilize the validate function from the relevant Default Security Context to ensure validity and feasibility of the operation.

4. Execute Security Operations with Security Contexts: For each Security Operation contained within the Action Set, utilize the execute function from the relevant Default Security Context to perform the operations on the bundle context. The Security Context will produce Security Outcomes which will be returned to the BPA.

5. Finalize Bundles with Policy Providers: Utilize the example Policy Provider’s finalize function to verify successful security operations, handle unsuccessful operations, and verify bundle consistency.

6. Free Bundle Context: The bundle has now completed the required BSL interactions, and the bundle context resources can be released. The bundle can now be forwarded within the BPA.

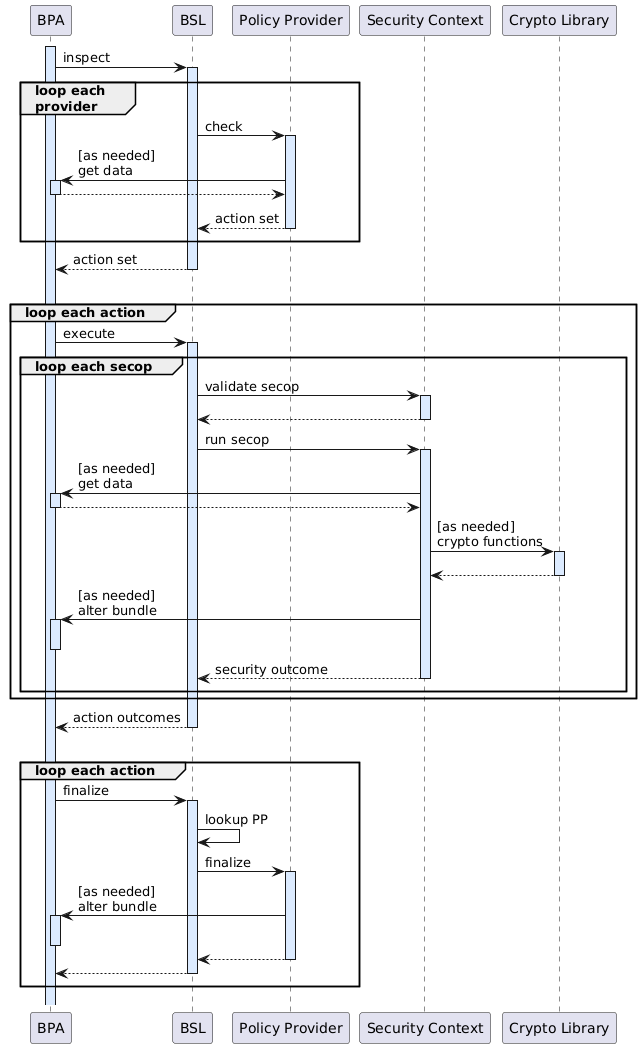

Figure 4.1. Sequence Diagram of Per-Bundle Workflow

The BSL Frontend API consists of two primary functions for per-bundle operation:

1. BSL_API_QuerySecurity covers steps 1 through 10 above. The function first utilizes the policy providers to query on a bundle. Next, each security operation in the resulting Action Set is validated using the security context associated with that security operation.

2. BSL_API_ApplySecurity covers steps 11 through 25 above. The function first executes each security operation with its associated security context. Next, the results of each action are finalized using the policy provider which was the source of the action.

Before joining or termination of an associated work thread, each BSL_LibCtx_t instance should be de-initialized with BSL_LibCtx_Deinit() to free its resources.

Each BSL Context is independent of all others, so there is no need to coordinate activities of one with any other.

The following are preprocessor define directives that limit certain capabilities within the security contexts.

BSL_CRYPTO_AESGCM_AUTH_TAG_LEN = 16

The length of an Authentication Tag for AES-GCM encryption and decryption as specified by [RFC9173].

BSLX_MAX_AES_PAD = 64

Maximum size of padding added to AES operation by crypto finalize operation. AES-GCM will not produce extra padding, and this value is likely inconsequential.

RFC9173_BCB_DEFAULT_IV_LEN = 12

The default initialization vector length as specified by [RFC9173].

The sample policy provider has the option to parse and load JSON-encoded ION-like policy rules into the sample policy provider from a file. Policy rules are as specified in [ION-BPSec-Policy-Manual] with some notable differences/modifications mentioned as follows:

policyrule_set

Each file’s JSON encoding must have the attribute policyrule_set, which contains a JSON list of ION-like JSON-encoded policyrule as specified in [ION-BPSec-Policy-Manual].

policy_action_on_fail

A full policy action set implementation does not exist yet within BSL. For now, a temporary policy_action_on_fail attribute should be set to "delete_bundle", "drop_block", or "do_nothing".

key_wrap

An extra security context parameter id key_wrap will be parsed. When the value is set to "0", key wrapping will be skipped. For all other values, key wrapping will be enabled. Decision to key wrap is a required parameter for security operations when executed within the implementations of the Default Security Contexts.

loc

An attribute of filter that specifies the interaction point (APPIN, APPOUT, CLIN, CLOUT) where the policy rule should be applied.

This procedure is how a BPA making use of the example policy provider initializes and registers with each instance of the BSL.

1. Initialize policy provider data with BSLP_PolicyProvider_Init().

2. Initialize policy rules from JSON by calling BSLP_RegisterPolicyFromJSON().

3. Register the policy with BSL by calling BSL_API_RegisterPolicyProvider(), the policy where the user_data of the policy provider descriptor is set to the initialized policy provider.

An example with two policy rules is shown below.

Example JSON-Encoded Policy Provider

{
  "policyrule_set": [
    {
      "policyrule": {
      "desc": "Integrity source rule",
      "filter": {
        "rule_id": "1",
        "role": "s",
        "tgt": 1,
        "loc": "appin",
        "sc_id": 1
      },
      "spec": {
        "svc": "bib-integrity",
        "sc_id": 1,
        "sc_parms": [
          {
            "id": "key_name",
            "value": "9100"
          },
          {
            "id": "sha_variant",
            "value": "7"
          },
          {
            "id": "scope_flags",
            "value": "0"
          },
          {
            "id": "key_wrap",
            "value": "0"
          }
        ]
      },
      "es_ref": "d_integrity",
      "policy_action_on_fail": "delete_bundle"
    },
    "event_set": {
      "es_ref": "d_integrity",
      "events": [
        {
          "event_id": "sop_processed",
          "actions": ["remove_all_target_sops"]
        }
      ]
    }
  },
  {
      "policyrule": {
      "desc": "Confidentiality source rule",
      "filter": {
        "rule_id": "2",
        "role": "s",
        "tgt": 1,
        "loc": "appin",
        "sc_id": 2
      },
      "spec": {
        "svc": "bcb-confidentiality",
        "sc_id": 2,
        "sc_parms": [
          {
            "id": "key_name",
            "value": "9103"
          },
          {
            "id": "aes_variant",
            "value": "1"
          },
          {
            "id": "aad_scope",
            "value": "0"
          },
          {
            "id": "key_wrap",
            "value": "1"
          }
        ]
      },
      "es_ref": "d_confidentiality",
      "policy_action_on_fail": "delete_bundle"
    },
    "event_set": {
      "es_ref": "d_confidentiality",
      "events": [
        {
          "event_id": "sop_processed",
          "actions": ["remove_all_target_sops"]
        }
      ]
    }
  }]
}

The Example PP does not rely on any externally configured preprocessor defines to operate normally. It does rely on the defines from the Default Security Context to control options of security operations used by the PP.

The following are preprocessor define directives that limit certain capabilities within the Mock BPA.

MOCK_BPA_LOG_QUEUE_SIZE = 100

Number of logging events to buffer before output.

DATA_QUEUE_SIZE = 100

Size of the Mock BPA ingress and egress queues for each thread.

The following provides troubleshooting guidance for the BSL from the perspective of a normal or administrative user. Each situation consists of an observed state followed by a recommended troubleshooting activity.

The BSL is hosted on a GitHub repository [bsl-source] with submodule references to several other repositories. There is a CONTRIBUTING.md document in the BSL repository which describes detailed procedures for submitting tickets to identify defects and suggest enhancements.

Separate from the source for the BSL proper, the BSL Product Guide and User Guide are hosted on a GitHub repository [bsl-docs], with its own CONTRIBUTING.md document for submitting tickets about either the Product Guide or User Guide.

While the GitHub repositories are the primary means by which users should submit detailed tickets, other inquiries can be made directly via email to the the support address dtnma-support@jhuapl.edu.
